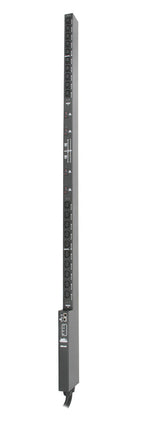

NBB-20VD32-3 Network Boot Bar Dual 32 Amp 200 - 250V
Includes
- Quick Start Guide
- RJX-7 - Network Cable, RJ45, Cat5, Straight-Through, 7 ft. (2.1 M)
- A13795 Zero-U Button Mount Bracket Kit
- A14291 Zero-U Bracket Mounting Kit
Overview
The NBB Network Boot Bar is a vertical format, network grade power distribution unit that provides Out-of-Band access to power switching/reboot, monitoring and alarm functions at distant branch office and data centers. The combination of remote reboot capabilities plus monitoring and alarm functions yields a more proactive approach to network management; both increasing network resilience and minimizing disruptions and outages.
The NBB’s powerful array of versatile, adaptable monitoring and alarm functions allows a more informed view of conditions and events at remote equipment sites, and helps to mitigate risks of downtime with real-time local and remote alerts to warn of potential problems before they turn into minor league disasters. The space-saving, vertical format of the NBB makes it the perfect fit for cramped equipment racks, where space for new devices is either limited or nonexistent.
Specifications
DevOps Automation:
- RESTful Web Services API
- Modules Available on Ansible Galaxy
- SYSLOG & Streaming Telemetry Support
- Slack & Splunk Support
- Zero Touch Provisioning (ZTP) Support
In-Band/Out-of-Band Connectivity:
- In-Band: 10/100/1000Base-T Ethernet Port
- Out-of-Band: External Modem Ready
- Local Access: RJ45 RS232 Setup Port
- Supports IPv4 and IPv6
Unit Management:
- Compatible with WMU Enterprise Management Software
- CLI & HTML5 Web-Based GUI
- SNMP & Full MIB Support
- FTP/TFTP/SFTP/SCP
- DHCP/DNS/DDNS
- NTP for True Server Sync
- Multiple Concurrent SSHv2 Sessions
Remote Power Management:
- 20 Switchable IEC 60320 C13 Outlets
- Remote Individual or Group Outlet Switching
- On/Off/Reboot/Default/Load Shed Switching
- Outlet Sequencing & Power Up Delays
- User-Defined Power-Up Default Status & Outlet Status Retention
- Plug Naming, Grouping & Access Control
- Scheduled On/Off/Reboot Switching
- Dual 32 Amp Power Input Feeds
- Ping Watchdog with Auto Reboot
- 240 VAC, 50/60 Hz
Security & Authentication:
- HTTPS, SSHv2, SNMPv3
- Transport Layer Security (TLS) v1.3
- IPSec (Server/Client) & OpenVPN
- IPtables / Static Routes
- Supports DUO, Okta and RSA® Two-Factor Authentication
- SAN Certificate Support
- AAA: LDAP / Active Directory / Kerberos / RADIUS / TACACS+
- Embedded Validated FIPS 140-2 Cryptographic Module
- Plug-Specific Password Protection
Event Monitoring, Logging & Notification:
- True RMS Current Metering
- Total or Branch Specific Metering
- Reports kWh, kW, Amps, Volts, Temperature
- Over-Current Alarms
- Lost Voltage (Line In) Alarm
- Invalid Access Lockout Alarm
- Circuit Breaker Open Alarm
- Temperature, Command & Event Logging
- Power Cycle Alarm
- Ping-No-Answer Alarm (Failed Ping Command)
- No Dialtone Alarm
- Alarm Notification via Email, SNMP, SYSLOG
- Alarm, Command, Access Audit, Current, Voltage, Watts and Temperature Logging
| Specifications: | |
|---|---|
| Connectivity: | |
| Ethernet Port: | 10/100/1000Base-T, RJ45 Port |
| Local Access: | (1) RJ45 RS232C Console Port (Modem Ready) |
| Power Management: | |
| Voltage: | 200-250V AC, 50/60 Hz |
| Power Distribution: | 10.24/12.23 kW (80% De-Rated) |
| Controlled Outlets: | (20) IEC 60320 C13 |
| Current: | 32 Amps |
| Power Inlet(s): | (2) 32 Amp IEC-60320 (Commando), Dual Power Supplies |
| Branches per Inlet: | 2 |
| Power Input Cables: | (2) Attached, 32 Amp IEC-60320 (Commando) |
| Physical/Environmental: | |
| Size: | 68.5"H x 1.75"W x 3.25"D (0U) - 13" Base has 5.5"Depth (174 cm H x 4.5 cm W x 8.25 cm D) |
| Weight: | 40 Pounds (18 Kg) Shipping Weight |
| Operating Temperature: | 32° to 122° F (0° C to 50° C) |
| Humidity: | 10% to 90% RH |
| Mounting: | Zero-U Rack Brackets Included |
| Agency Approvals: | |
| FCC, UL | |
Downloads
Software
WTI regularly issues software updates to add new features, address irregularities and incorporate new security enhancements.
To speak with a qualified product engineer about custom software requests, please call: 1.800.854.7226.
